12um 640x512 Aschur USB Modúl Teirmeach Méid Teirmeach
|
Uimhir shamhail |
SG - HTM06U2 - T9 |
SG - HTM06U2 - T15 |
SG - HTM06U2 - T19 |
SG - HTM06U2 - T25 |
|
Modúl teirmeach |
||||
|
Braiteoir íomhá |
Eagair eitleáin fócasacha vox vox |
|||
|
Max. Réiteach |
640 × 512 |
|||
|
Ráta |
Inchoigeartaithe, 6Hz go 30Hz |
|||
|
Eatramh picteilín |
12μm |
|||
|
Tonnbhanda freagartha |
8μm go 14μm |
|||
|
NETD |
≤ 40mk (@ 25 ° C), F# = 1.0 |
|||
|
Lionsa (fad fócasach) |
9.1mm |
15mm |
19mm |
25mm |
|
F Uimhir |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Ifov |
1.3Mrad |
0.8Mrad |
0.6Mrad |
0.48Mrad |
|
Réimse radhairc (H × V) |
48.3 ° × 38.6 ° |
29.3 ° × 23.4 ° |
22.8 ° × 18.4 ° |
17.46 ° × 14.01 ° |
|
Min. Fad ag díriú |
2m |
5m |
7m |
8m |
|
Tomhas teochta |
||||
|
Fadteocht |
- 20 ° C ~+150 ° C & 100 ° C ~ 550 ° C. |
|||
|
Cruinneas teochta |
Uasmhéid (± 2 ° C, ± 2%) ag teocht chomhthimpeallach 25 ° C agus teocht an réada os cionn 0 ° C. |
|||
|
Achar teochta (bunaithe ar 0.65 × 0.65m) |
10m (is faide) |
15m (is faide) |
20m (is faide) |
25m (is faide) |
|
Riail teirmeolaíochta |
3 Cineálacha Riail Tomhais Teochta, 21 Rialacha (10 bpointe, 10 réigiún, agus 1 líne) |
|||
|
Aschur sonraí |
Sonraí teochta 16bit |
|||
|
Taispeántas íomhá |
||||
|
Coigeartú i gcodarsnacht |
Tá |
|||
|
Coigeartú gile |
Tá |
|||
|
Pailéid |
15 pailéid de dhath inchoigeartaithe, te réamhshocraithe bán te |
|||
|
Mód FFC (Ceartú Réimse Flat) |
Auto, lámhleabhar, ceartú seachtrach |
|||
|
DDE |
Tá |
|||
|
Ginearál |
||||
|
Comhéadan crua -earraí |
USB2.0 FPC |
|||
|
Cumhacht |
DC 5V ± 5% |
|||
|
Tomhaltas cumhachta |
≤0.55w |
≤0.55w |
≤0.55w |
≤0.65W |
|
Creathadh & turraing |
Creathadh: creathadh sinusoidal, 20 m/s ², 3 - ais Turraing: Leath -Shín tonn, 30 g/11 ms, 3 - ais 6 - Bealach |
|||
|

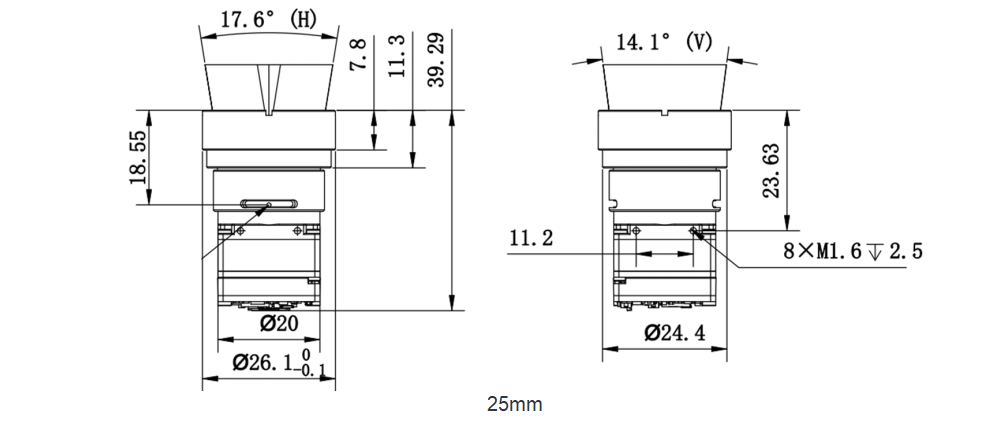

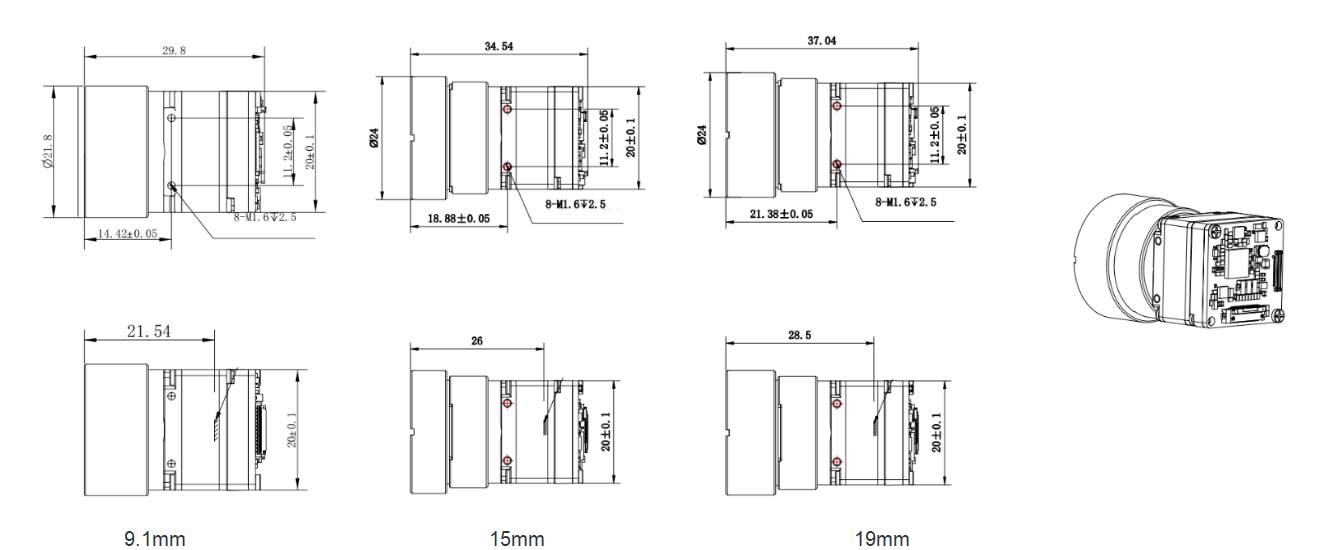

Toise (mm) |
29.8*20*20mm |
34.54*20*20mm |
37.04*20*20mm |
39.29*20*20mm |
|
Ualach |
≤22g |
≤28g |
≤32g |
≤33g |
|
Teocht oibre |
- 40 ° C ~ 70 ° C. |
|||
